ESXi, TPMs, fTPMs, & Intel PTT: A love story

15 February, 2023   461 words   ~3 mins
#tpm

Table of Contents

Here’s a quick little rabbit-hole of upgrading ESXi clients, and a crash course on TPMs and their equivalents! 💛

- TPM/fTPM/Intel PTT Rundown

  • Trusted Platform Module - a secure crypto-processor that generates, stores, and limits the use of cryptographic keys required to access system files!!!!! (reference).

The traditional TPM is a physical security & encryption-focused chip on the motherboard, but can also be built into the firmware of the computer’s CPU, which are notably AMD Firmware TPM (fTPM) and Intel Platform Trust Technology (PTT).

Both of these have been built to include TPM 2.0 functionality, but may not be enabled by default in the machine’s BIOS, so be sure to check. It’s typically found under the Security tab/option in BIOS, which are all different in design, so Google is your bestie when discovering how to access a feature on your specific model 🤪.

- Upgrading ESXi client:

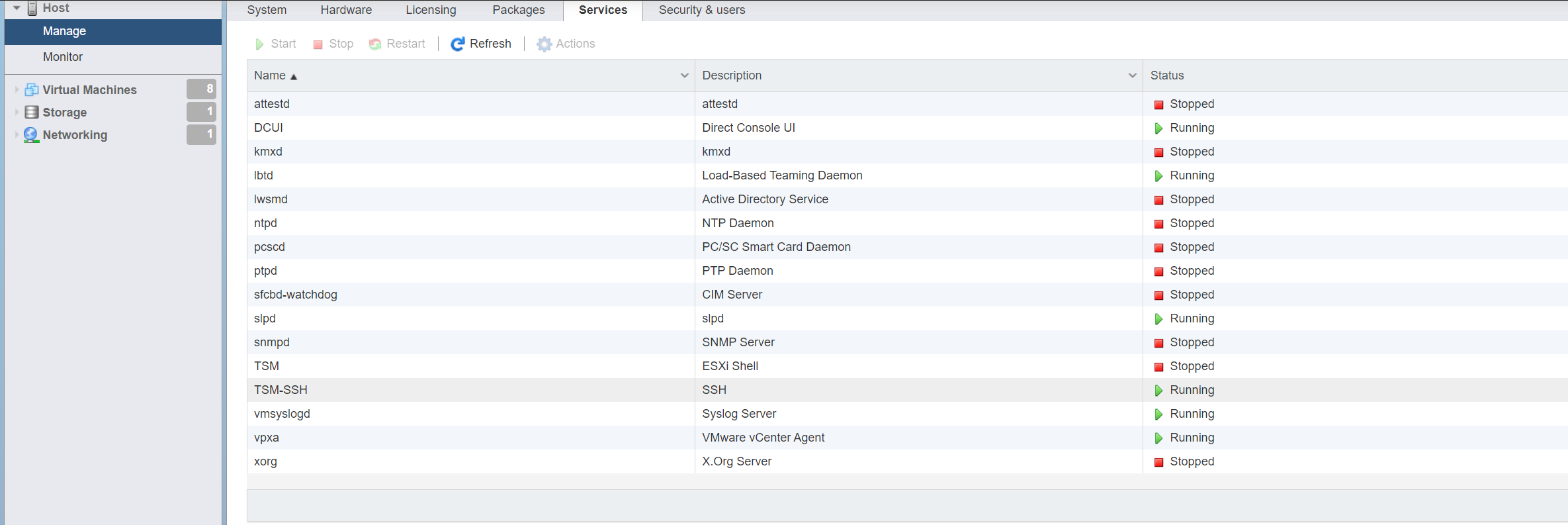

  1. Enable TSM-SSH via ESXi GUI to enable SSH into your machine

    Via Manage –> Services –> TSM-SSH, then right click and Run.

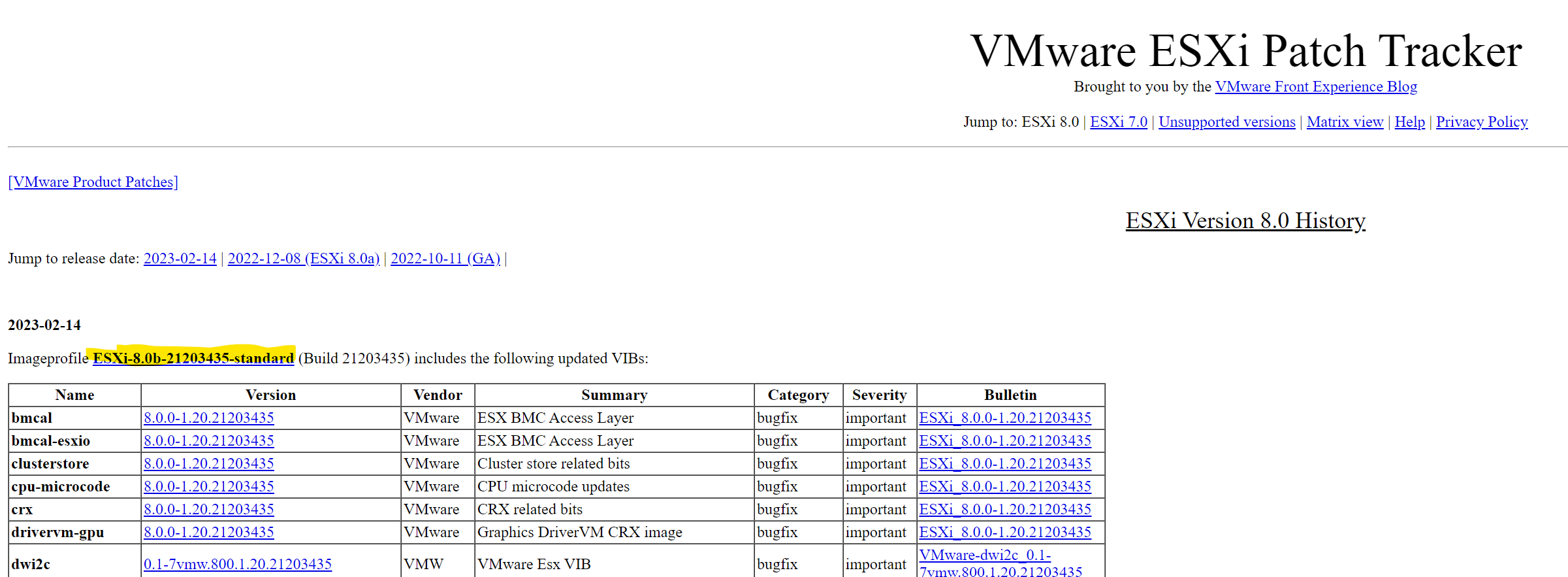

  2. SSH into your ESXi box, then check https://esxi-patches.v-front.de/ for the latest ESXi patches. Patches are cumulative, so download the latest one (at the top, highlighted).

    Alt text

    Copy the text from the pop-up generated after clicking the link, and paste it into the shell of the system via SSH. The code is provided below for convenience (lines separated), but DO NOT just copy the second code block, as it will download the version for build 8.0b-21203435, which will change over time.

    • esxcli network firewall ruleset set -e true -r httpClient

    • esxcli software profile update -p [YOUR-VER-HERE] \ -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml

    Systems with an Intel PTT may throw an error of not having a supported TPM 2.0, and if so, check that Intel PTT is enabled in BIOS before attaching --no-hardware-warning to the second code block:

    Revised Code for Intel PTT (and potentially AMD fTPMs):

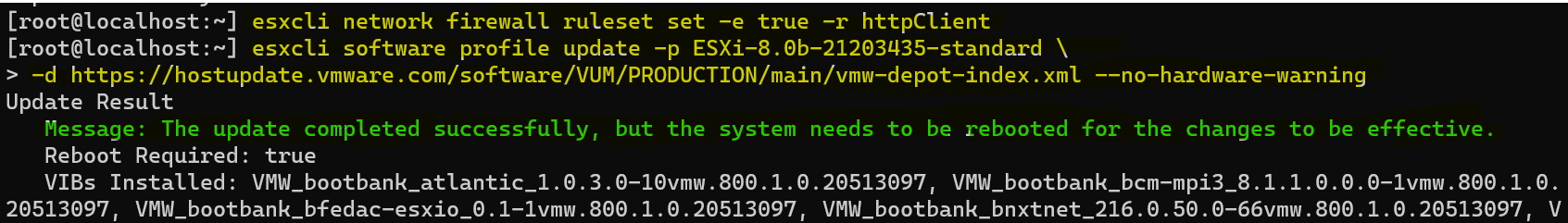

    • esxcli software profile update -p [YOUR-VER-HERE] \ -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml --no-hardware-warning

    When running the second code block, the update is downloaded, which can take 5-10minutes depending on your internet connection. Cross your fingers, pray to the networking gods, and just wait 🙏.

  3. Finally, run the final code block to adjust the firewall rules now you’re done:

    esxcli network firewall ruleset set -e false -r httpClient

    Then reboot to apply changes.

  4. Once rebooted, SSH into the box and run vmware -v to check the version of ESXi and that the update has been successful.

💛 Hope this was of some help & best of luck! 💛

DISCLAIMER: I would consider this a LEGACY POST of mine, written a long time ago. Please excuse any typos, errors or lapses in memory/judgement - as it was added to the site from the archives, just to put everything in one place. Thankq for your understanding 🙇‍♀️
